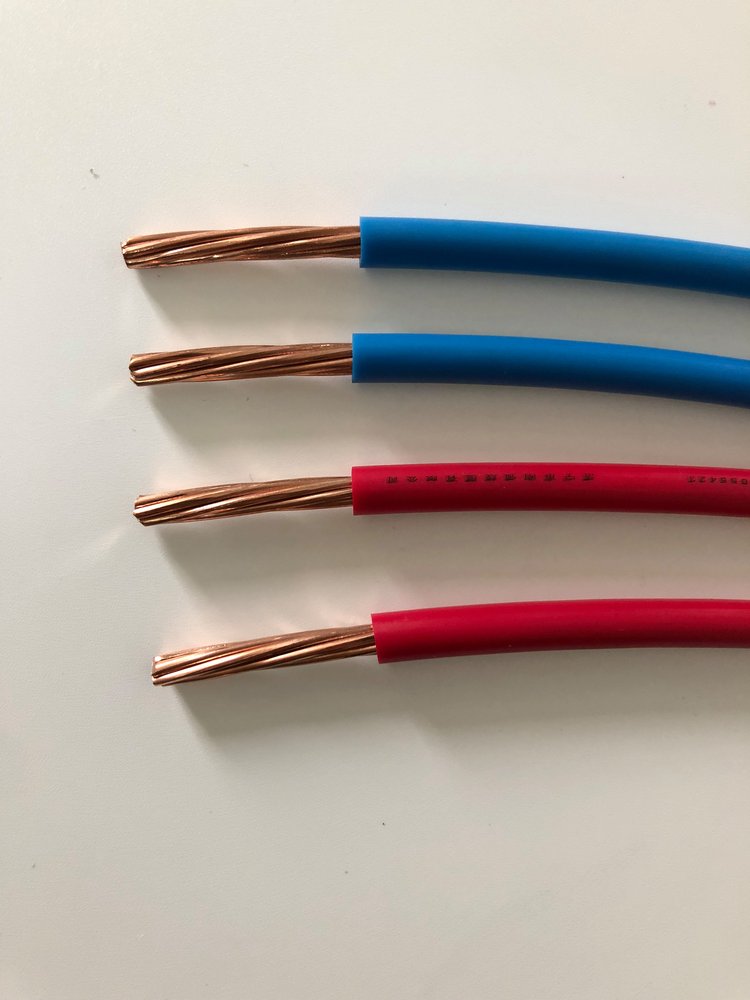

聚氯乙烯絕緣電纜（電線）
產品標準本產品按GB/T5023《額定電壓450/750V及以下聚氯乙烯絕緣電纜》、JB/T8734《額定電壓450/750V及以下聚氯乙烯絕緣電纜電線和軟線》標準生產，同時還可根據用戶需要按國際電工委員會推薦標準IEC、 英國標準、德國標準及美國標準生產。 適用范圍本產品適用于額定電壓450/750V及以下的動力裝置、固定布線及撓 性鏈接電器之用。 適用特性1. 額定電壓：450/750、300/500V、300/300V2. 電纜導體的允許長期最高工作溫度：60227 IEC 01 (BV).................70℃60227 IEC 02 (RV).........…....70℃3. 電纜敷設時環境溫度應不低于0℃。4. 電纜彎曲半徑：D≤25mm.................≥4D ; D>25mm.................≥6D型號規格電纜近似重量 (kg/km)60227 IEC 01 (BV)一般用途單芯硬導體無護套電纜GB/T 5023IEC 6022760227 IEC 02 (RV)一般用途單芯軟導體無護套電纜60227 IEC 05 (BV)內部布線用導體溫度為 70℃的單芯實心導體無護套電纜60227 IEC 06 (RV)內部布線用導體溫度為 70℃的單芯軟導體無護套電纜60227 IEC 42 (RVV)扁形無護套軟線60227 IEC 52 (RVV)輕型聚氯乙烯護套軟線60227 IEC 53 (RVV)普通聚氯乙烯護套軟線60227 IEC 74 (RVVYP)耐油聚氯乙烯護套屏蔽電纜60227 IEC 75 (RVVY)耐油聚氯乙烯護套非屏蔽軟電纜BV銅芯聚氯乙烯絕緣電線JB/T 8734BVV銅芯聚氯乙烯絕緣電線電纜RVB銅芯聚氯乙烯絕緣聚氯乙烯護套扁型電纜RVS銅芯聚氯乙烯絕緣絞型連接用軟電纜RVP銅芯聚氯乙烯絕緣屏蔽軟電線RVVP銅芯聚氯乙烯絕緣屏蔽聚氯乙烯護套軟電纜RVVPS銅芯聚氯乙烯絕緣聚氯乙烯護套對絞屏蔽軟電纜

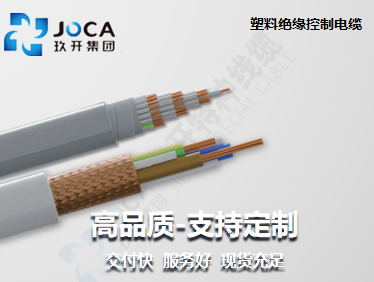

塑料絕緣控制電纜
塑料絕緣控制電纜是以純銅為導電芯，外裹 PVC 或環保低煙無鹵塑料絕緣層，能穩定傳輸信號與少量電能，還具備防干擾、耐油污酸堿、防潮的功能，主要用于 450/750V 以下的工業設備控制、儀器連接、樓宇燈光空調控制，以及地鐵、醫院等場景的設備信號傳輸。 產品標準 本產品按GB/T 9330《塑料絕緣控制電纜》及企業標準制造。 適用范圍 本產品適用于額定電壓 450/750V及以下控制、信號、保護及測量系統接線之用。 使用特性1. 額定電壓Uo/U: 450/750V2. 電纜導體的允許長期工作溫度上限：聚氯乙烯絕緣 70℃。3. 短路時(至多持續時間不超過5s)電纜導體的溫度上限不超過：聚氯乙烯絕緣 160℃。4. 電纜敷設時環境溫度應不低于0℃5. 推薦的允許彎曲半徑無鎧裝層的電纜，應不小于電纜外徑的6倍;有鎧裝或銅帶屏蔽結構的電纜，應不小于電纜外徑的12倍;有屏蔽層結構的軟電纜，應不小于電纜外徑的6倍。 型號名稱芯數截面KVVR銅芯聚氯乙烯絕緣聚氯乙烯護套控制軟電纜2 - 600.5 - 10KVVRP銅芯聚氯乙烯絕緣聚氯乙烯護套編織屏蔽控制軟電纜2 - 600.5 - 10型號規格近似外徑 (mm)電纜近似重量 (kg/km)KVVR2×0.56.754KVVR3×0.5763KVVR4×0.57.677KVVR5×0.58.287KVVR6×0.58.8100KVVR7×0.58.8105KVVR8×0.59.5120KVVR9×0.510.3134KVVR10×0.511148KVVR11×0.511155KVVR12×0.511163KVVR13×0.511.4176KVVR14×0.511.4186KVVR15×0.512197KVVR16×0.512206KVVR17×0.513.2236KVVR18×0.513.2244KVVR19×0.513.2254KVVR20×0.513.5264KVVR21×0.513.8275KVVR22×0.514.1290KVVR23×0.515.3303KVVR24×0.515.3313KVVR25×0.516.1324KVVR26×0.516.1335KVVR27×0.516.1341KVVR28×0.516.7354KVVR29×0.516.7363KVVR30×0.516.7371KVVR31×0.517.3386KVVR32×0.517.3395KVVR33×0.517.3403KVVR34×0.517.9417KVVR35×0.517.9426KVVR36×0.517.9434KVVR37×0.517.9441KVVR2×0.757.262KVVR3×0.757.575KVVR4×0.758.189KVVR5×0.758.8103KVVR6×0.759.4120KVVR7×0.759.4131KVVR8×0.7510.1147KVVR9×0.7511163KVVR10×0.7511.7179KVVR11×0.7512.1193KVVR12×0.7512.1204KVVR13×0.7513.3237KVVR14×0.7513.3249KVVR15×0.7513.9265KVVR16×0.7513.9276KVVR17×0.7514.6293KVVR18×0.7514.6304KVVR19×0.7514.6316KVVR20×0.7515330KVVR21×0.7515.3344KVVR22×0.7516.3362KVVR23×0.7517378KVVR24×0.7517.3390KVVR25×0.7517.3404KVVR26×0.7517.3415KVVR27×0.7517.3427KVVR28×0.7517.9443KVVR29×0.7517.9454KVVR30×0.7517.9466KVVR31×0.7518.6428KVVR32×0.7518.6494KVVR33×0.7518.6505KVVR34×0.7519.7540KVVR35×0.7519.7551KVVR36×0.7519.7562KVVR37×0.7519.7574KVVR2×17.367KVVR3×17.788KVVR4×18.3101KVVR5×19117KVVR6×19.7135KVVR7×19.8149KVVR8×110.4166KVVR9×111.4185KVVR10×112.1203KVVR11×113.1236KVVR12×113.1250KVVR13×113.1263KVVR14×113.1277KVVR15×114.4300KVVR16×114.4313KVVR17×115.2332KVVR18×115.2345KVVR19×115.2359KVVR20×115.6375KVVR21×115.9391KVVR22×116.3411KVVR23×117.6429KVVR24×117.6443KVVR25×117.9460KVVR26×117.9473KVVR27×117.9487KVVR28×118.5505KVVR29×118.5518KVVR30×118.5532KVVR31×119.6568KVVR32×119.6581KVVR33×119.6595KVVR34×120.4614KVVR35×120.4628KVVR36×120.4641KVVR37×120.4655KVVRP2×0.57.168KVVRP3×0.57.479KVVRP4×0.5893KVVRP5×0.58.6107KVVRP6×0.59.2121KVVRP7×0.59.2129KVVRP8×0.59.9143KVVRP9×0.510.7160KVVRP10×0.511.3173KVVRP11×0.511.3182KVVRP12×0.511.3191KVVRP13×0.511.3200KVVRP14×0.511.3209KVVRP15×0.513244KVVRP16×0.513253KVVRP17×0.513.6268KVVRP18×0.513.6277KVVRP19×0.513.6285KVVRP20×0.513.9297KVVRP21×0.514.2308KVVRP22×0.515325KVVRP23×0.515.6340KVVRP24×0.515.6349KVVRP25×0.516.5365KVVRP26×0.516.5374KVVRP27×0.516.5383KVVRP28×0.517397KVVRP29×0.517405KVVRP30×0.517414KVVRP31×0.517.6429KVVRP32×0.517.6438KVVRP33×0.517.6447KVVRP34×0.518.3461KVVRP35×0.518.3470KVVRP36×0.518.3479KVVRP37×0.518.3488KVVRP2×0.757.577KVVRP3×0.757.991KVVRP4×0.758.5107KVVRP5×0.759.1124KVVRP6×0.759.8142KVVRP7×0.759.8153KVVRP8×0.7510.5170KVVRP9×0.7511.4189KVVRP10×0.7512.1206KVVRP11×0.7512.1218KVVRP12×0.7512.1229KVVRP13×0.7512.1240KVVRP14×0.7512.1252KVVRP15×0.7513.9292KVVRP16×0.7513.9304KVVRP17×0.7514.6321KVVRP18×0.7514.6333KVVRP19×0.7514.6344KVVRP20×0.7514.9359KVVRP21×0.7515.2374KVVRP22×0.7516.1394KVVRP23×0.7516.8411KVVRP24×0.7516.8423KVVRP25×0.7517.7443KVVRP26×0.7517.7454KVVRP27×0.7517.7466KVVRP28×0.7518.3482KVVRP29×0.7518.3494KVVRP30×0.7518.3505KVVRP31×0.7519524KVVRP32×0.7519535KVVRP33×0.7519546KVVRP34×0.7520.1582KVVRP35×0.7520.1594KVVRP36×0.7520.1605KVVRP37×0.7520.1617KVVRP2×17.783KVVRP3×18.199KVVRP4×18.7118KVVRP5×19.4138KVVRP6×110.1157KVVRP7×110.1171KVVRP8×110.8190KVVRP9×111.8212KVVRP10×113.1250KVVRP11×113.1263KVVRP12×113.1277KVVRP13×113.1290KVVRP14×113.1304KVVRP15×114.3330KVVRP16×114.3344KVVRP17×115364KVVRP18×115378KVVRP19×115392KVVRP20×115.4409KVVRP21×115.8425KVVRP22×116.7449
