PRODUCT CENTER

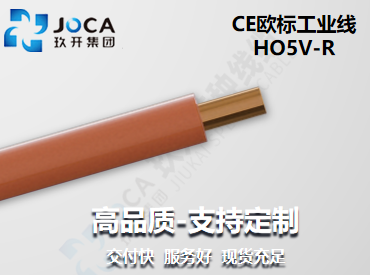

HO5V-R
HO5V-R可彎曲單芯線，易開皮，裁剪，安裝方便，符合歐盟協調標準，用于電器、裝置的配電盤與電源分配器接線板之間的內部周邊接線，電子和電氣設備開關柜之間接口，設計使用半暴露和嵌入式導管可彎曲敷設與接地線。符合認證:RoHS CE 電纜結構1. 導體:絞合裸銅或者鍍錫銅符合IEC60228，VDE02952. 絕緣:PVC/TI1符合 DIN VDE0281第1部分 HD21.13. 顏色識別:符合 HD 402 標準4. 應用標準:HD 21.3 S3、VDE-0281 Part-3、CE Low VltageDiretive、73/23/EEC and 93/68/EEC技術參數：1. 額定電壓:300/500V2. 測試電壓:2000V符合DINVDE0281第2部分HD21.23. 最小彎曲半徑4. 固定敷設：12D(電纜外徑)5. 溫度范圍6. 固定敷設:-20至 +70℃型號規格近似外徑 (mm)電纜近似重量 (kg/km)H05V - R0.52.18.9H05V - R0.752.311.5H05V - R12.514.4
H05VVD3H6-F （0.75mm2-1mm2 3-24 芯，25-60 芯）
H05VVD3H6-F Application Scope:Suitable for traveling inside the elevator free-hanging suspended over 80 meters in length, and moving speed no more than 4 m / s , cable can also be used as a travel lift and cable reel cableH05VVD3H6-F Structure:Conductor: stranded bare copper or tinned copper comply with VDE 0295 CLASS 5 & CLASS 6, IEC 228Insulation: PVC / TI2 PVC comply with DIN VDE 0281.Color ID: in line with standard HD 308Reinforcement:Galvanized steel wireSheath material: PVC / TM2 PVCApplication Standard:HD21, VDE 0281, EN 50214-2006H05VVD3H6-F Characteristics and Compliance:Features: excellent resistance to ?ex;good oil resistance, cold resistance, moisture resistance excellent wear resistance, withstand greater mechanical stressConformity Approval: ROHS CEH05VVD3H6-F Technical Parameters:Rated Voltage: 300/500V Test Voltage: insulation thickness ≤ 0.6: 1500V,Final test: 2000VMin. Bending RadiusCable laying installation allows bending radius should be not less than 6 times the cable small side.Temperature Range: -15 To +70 ℃?ame test: VDE0472 804 part by Class B Experimental and IEC332-1
H05V2V2-F，H05V2V2H2-F
H05V2V2-F，H05V2V2H2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H05V2V2-F，H05V2V2H2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH05V2V2-F，H05V2V2H2-F Features & Conformity:Features: Super ?ne conductor, ?exible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH05V2V2-F，H05V2V2H2-F Technical Parameters:Rated Voltage：300/500VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +90℃Movable Installation：-5 To +90℃
H03VV-F，H03VVH2-F
H03VV-F，H03VVH2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H03VV-F，H03VVH2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH03VV-F，H03VVH2-F Features & Conformity:Features: Super ?ne conductor, ?exible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH03VV-F，H03VVH2-F Technical Parameters:Rated Voltage：300/300VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +70℃Movable Installation：-5 To +70℃

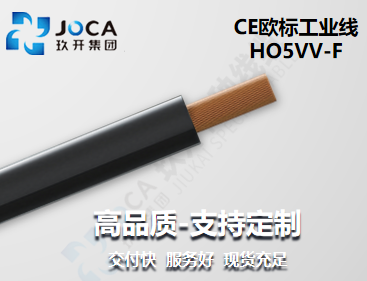

HO5VV-F
HO5VV-F超細導體，柔軟小的彎曲角度；能承受一定的機械外力；符合歐盟協調標準，適用于電氣儀表、動力設備及自動化裝置內外部無強制牽引力無方向偶爾可移動連接線。符合認證：RoHS CE 電纜結構1. 導 體：絞合裸銅或者鍍錫銅符合VDE 0281 Part 5, HD21.5S3 IEC 60227-52. 絕 緣：PVC/TI2聚氯乙烯符合DIN VDE 0281. 3. 顏色識別：符合HD 402標準4. 護套材料：PVC/TM2聚氯乙烯5. 應用標準：HD21.5,VDE 0281,CEI 20-20/5, CEI20-35(EN60332-1),CEI20-52,CE低壓73/23/EEC &93/68/EEC技術參數：1. 額定電壓：300/500V2. 測試電壓：2000V符合DIN VDE 0281第2部分HD21.2 3. 最小彎曲半徑固定敷設：5×D (電纜外徑) 移動安裝：8×D (電纜外徑)4. 溫度范圍固定敷設：-20至+70℃ 移動安裝：-5至+70℃型號規格近似外徑 (mm)電纜近似重量 (kg/km)H05VV - F2×0.756.257.37H05VV - F3×0.756.667.67H05VV - F4×0.757.281.23H05VV - F5×0.758102.43H05VV - F2×1.06.465.16H05VV - F3×1.06.877.62H05VV - F4×1.07.698.72H05VV - F5×1.08.3118.34H05VV - F2×1.57.488.83H05VV - F3×1.58108.22H05VV - F4×1.59137.28H05VV - F5×1.510169.56H05VV - F2×2.59132.38H05VV - F3×2.59.7164.77H05VV - F4×2.510.6202.93H05VV - F5×2.511.9251.02H05VV - F2×4.010.4180.68H05VV - F3×4.011.2226.9H05VV - F4×4.012.3281.88H05VV - F5×4.013.9354.65

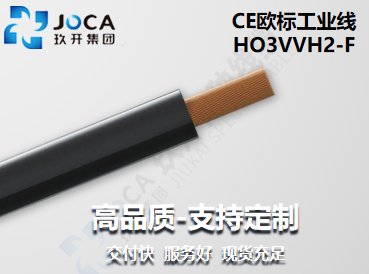

HO3VVH2-F
HO3VVH2-F超細導體，柔軟小的彎曲角度；能承受一定的機械外力；符合歐盟協調標準，適用于電氣儀表、動力設備及自動化裝置內外部無強制牽引力無方向偶爾可移動連接線。符合認證：RoHS CE 電纜結構1. 導 體：絞合裸銅或者鍍錫銅符合VDE 0281 Part 5, HD21.5S3 IEC 60227-52. 絕 緣：PVC/TI2聚氯乙烯符合DIN VDE 0281. 3. 顏色識別：符合HD 402標準4. 護套材料：PVC/TM2聚氯乙烯5. 應用標準：HD21.5,VDE 0281,CEI 20-20/5, CEI 20-35(EN60332-1),CEI 20-52,CE 低壓73/23/EEC& 93/68/EEC技術參數：1. 額定電壓：300/300V2. 測試電壓：2000V符合DIN VDE 0281第2部分HD21.2 3. 最小彎曲半徑 固定敷設：5×D (電纜外徑) 移動安裝：8×D (電纜外徑)4. 溫度范圍 固定敷設：-20至+70℃ 移動安裝：-5至+70℃型號規格近似外徑 (mm)電纜近似重量 (kg/km)H03VVH2 - F2×0.53.4*5.629.01H03VVH2 - F2×0.753.6*6.035.65

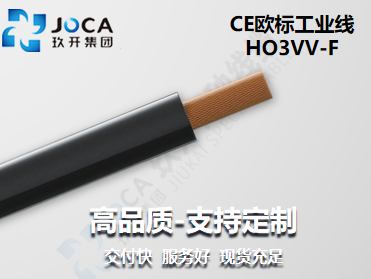

HO3VV-F
HO3VV-F超細導體，柔軟小的彎曲角度； 能承受一定的機械外力：符合歐盟協調標準，適用于電氣儀表、動力設備及自動化裝置內外部無強制 牽引力無方向偶爾可移動連接線。符合認證：RoHSCE 電纜結構1. 導 體：絞合裸銅或者鍍錫銅符合VDE 0281 Part 5, HD21.5S3 IEC60227-52. 絕 緣：PVC/TI2 聚氯乙烯符合DIN VDE 0281. 3. 顏色識別：符合HD 402標準4. 護套材料：PVC/TM2聚氯乙烯5. 應用標準：HD21.5,VDE 0281,CEI 20-20/5, CEI 20-35(EN60332-1),CEI 20-52,CE低壓73/23/EEC&93/68/EEC技術參數：1. 額定電壓：300/300V2. 測試電壓：2000V符合 DIN VDE 0281第2部分HD21.23. 最小彎曲半徑 固定敷設：5×D (電纜外徑) 移動安裝：8×D (電纜外徑)4. 溫度范圍 固定敷設：-20至+70℃型號規格近似外徑 (mm)電纜近似重量 (kg/km)H03V - F2×0.5537.88H03V - F3×0.55.344.73H03V - F4×0.55.853.86H03V - F2×0.755.446.42H03V - F3×0.755.755.43H03V - F4×0.756.367.23
HO7Z1-K
HO7Z1-R良好的耐候性；良好的柔軟度;符合歐盟協調標準;鹵酸氣體釋放量，符合IEC754-1;使用于核電站、地鐵車站、電話交換機及計算機控制中心、高層建筑大樓、賓館、廣播電視臺、重要軍事設施、石油 平臺等，以及人員較集中，空氣密度低的場所。符合認證：RoHSCE 電纜結構1. 導 體：單根或絞合裸銅或者鍍錫銅符合IEC 60228 VDE 0295 5類標準2. 絕 緣：低煙無鹵阻燃混合物 3. 顏色識別：符合HD 402標準4. 應用標準：EN 60332-1-2;EN 60332-3-24技術參數：1. 額定電壓：450/750V2. 測試電壓：2500V符合DIN VDE 0281第2部分HD21.2 3. 最小彎曲半徑固定敷設：12.5×D (電纜外徑) 移動安裝：16×D (電纜外徑)4. 溫度范圍固定敷設：-20至+70℃ 移動安裝：-5至+70℃型號（Model 標稱截面（mm2））絕緣厚度平均外徑上限電纜近似重量（kg/km）20℃導體最大直流電阻（Ω/km）70℃時最小絕緣電阻（MΩ?km）不鍍金屬鍍金屬H07Z1-U 1.50.72.820.112.112.20.011H07Z1-U 2.50.83.431.77.417.560.01H07Z1-U 40.83.846.54.614.70.0085H07Z1-U 60.84.366.63.083.110.0074H07Z1-U 1016109.81.831.840.0072H07Z1-R 1.50.72.921.412.112.20.01H07Z1-R 2.50.83.634.37.417.560.0099H07Z1-R 40.84.249.54.614.70.0082H07Z1-R 60.84.771.33.083.110.007H07Z1-R 1016117.11.831.840.0067H07Z1-R 1617.11771.151.160.0056H07Z1-R 251.29277.60.7270.7340.0053H07Z1-R 351.210.2381.20.5240.5290.0046H07Z1-K 1.50.72.921.313.313.70.01H07Z1-K 2.50.83.533.87.988.210.0095H07Z1-K 40.84.150.34.955.090.0078H07Z1-K 60.84.671.63.33.390.0068H07Z1-K 1016122.11.911.950.0065H07Z1-K 1617.1184.71.211.240.0053H07Z1-K 251.28.7286.20.780.7950.005H07Z1-K 351.29.9395.50.5540.5650.0043H07Z1-K 501.411.75390.3860.3930.0042H07Z1-K 701.4147300.2720.2770.0036H07Z1-K 951.615.69000.2060.210.0036

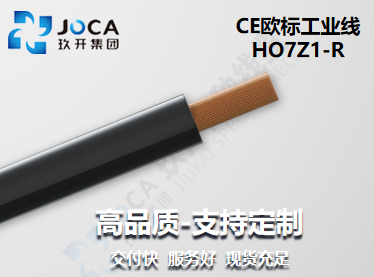

HO7Z1-R
HO7Z1-R良好的耐候性；良好的柔軟度;符合歐盟協調標準;鹵酸氣體釋放量，符合IEC754-1，使用于核電站、地鐵車站、電話交換機及計算機控制中心、高層建筑大樓、賓館、廣播電視臺、重要軍事設施、石油 平臺等，以及人員較集中，空氣密度低的場所。符合認證：RoHSCE 電纜結構1. 導 體：單根或絞合裸銅或者鍍錫銅符合 IEC 60228 VDE 0295 2. 絕 緣：低煙無鹵阻燃混合物3. 顏色識別：符合HD 402標準4. 應用標準：EN 60332-1-2;EN 60332-3-24技術參數：1. 額定電壓：450/750V2. 測試電壓：2500V符合DIN VDE 0281第2部分HD21.2 3. 最小彎曲半徑固定敷設：12.5×D (電纜外徑)4. 溫度范圍固定敷設：-20至+70℃型號（Model 標稱截面（mm2））絕緣厚度平均外徑上限電纜近似重量（kg/km）20℃導體最大直流電阻（Ω/km）70℃時最小絕緣電阻（MΩ?km）不鍍金屬鍍金屬H07Z1-U 1.50.72.820.112.112.20.011H07Z1-U 2.50.83.431.77.417.560.01H07Z1-U 40.83.846.54.614.70.0085H07Z1-U 60.84.366.63.083.110.0074H07Z1-U 1016109.81.831.840.0072H07Z1-R 1.50.72.921.412.112.20.01H07Z1-R 2.50.83.634.37.417.560.0099H07Z1-R 40.84.249.54.614.70.0082H07Z1-R 60.84.771.33.083.110.007H07Z1-R 1016117.11.831.840.0067H07Z1-R 1617.11771.151.160.0056H07Z1-R 251.29277.60.7270.7340.0053H07Z1-R 351.210.2381.20.5240.5290.0046H07Z1-K 1.50.72.921.313.313.70.01H07Z1-K 2.50.83.533.87.988.210.0095H07Z1-K 40.84.150.34.955.090.0078H07Z1-K 60.84.671.63.33.390.0068H07Z1-K 1016122.11.911.950.0065H07Z1-K 1617.1184.71.211.240.0053H07Z1-K 251.28.7286.20.780.7950.005H07Z1-K 351.29.9395.50.5540.5650.0043H07Z1-K 501.411.75390.3860.3930.0042H07Z1-K 701.4147300.2720.2770.0036H07Z1-K 951.615.69000.2060.210.0036
HO7Z1-U
H07Z1-U良好的耐候性；良好的柔軟度;符合歐盟協調標準;鹵酸氣體釋放量，符合IEC754-1，使用于核電站、地鐵車站、電話交換機及計算機控制中心、高層建筑大樓、賓館、廣播電視臺、重要軍事設施、石油 平臺等，以及人員較集中，空氣密度低的場所。符合認證:RoHSCE 電纜結構1. 導 體：單根或絞合裸銅或者鍍錫銅符合 IEC 60228 VDE 0295 1類標準2. 絕 緣：低煙無鹵阻燃混合物3. 顏色識別：符合HD 402標準4. 應用標準：EN 60332-1-2;EN 60332-3-24技術參數：1. 額定電壓：450/750V2. 測試電壓：2500V符合DIN VDE 0281第2部分HD21.2 3. 最小彎曲半徑固定敷設：12.5×D (電纜外徑) 4. 溫度范圍固定敷設：-20至+70℃型號（Model 標稱截面（mm2））絕緣厚度平均外徑上限電纜近似重量（kg/km）20℃導體最大直流電阻（Ω/km）70℃時最小絕緣電阻（MΩ?km）不鍍金屬鍍金屬H07Z1-U 1.50.72.820.112.112.20.011H07Z1-U 2.50.83.431.77.417.560.01H07Z1-U 40.83.846.54.614.70.0085H07Z1-U 60.84.366.63.083.110.0074H07Z1-U 1016109.81.831.840.0072H07Z1-R 1.50.72.921.412.112.20.01H07Z1-R 2.50.83.634.37.417.560.0099H07Z1-R 40.84.249.54.614.70.0082H07Z1-R 60.84.771.33.083.110.007H07Z1-R 1016117.11.831.840.0067H07Z1-R 1617.11771.151.160.0056H07Z1-R 251.29277.60.7270.7340.0053H07Z1-R 351.210.2381.20.5240.5290.0046H07Z1-K 1.50.72.921.313.313.70.01H07Z1-K 2.50.83.533.87.988.210.0095H07Z1-K 40.84.150.34.955.090.0078H07Z1-K 60.84.671.63.33.390.0068H07Z1-K 1016122.11.911.950.0065H07Z1-K 1617.1184.71.211.240.0053H07Z1-K 251.28.7286.20.780.7950.005H07Z1-K 351.29.9395.50.5540.5650.0043H07Z1-K 501.411.75390.3860.3930.0042H07Z1-K 701.4147300.2720.2770.0036H07Z1-K 951.615.69000.2060.210.0036
HO5Z1-K
HO5Z1-K良好的耐候性；良好的柔軟度;符合歐盟協調標準;鹵酸氣體釋放量，符合IEC754-1，使用于核電站、地鐵車站、電話交換機及計算機控制中心、高層建筑大樓、賓館、廣播電視臺、重要軍事設施、石油 平臺等，以及人員較集中，空氣密度低的場所。符合認證:RoHSCE 電纜結構1. 導 體：絞合裸銅或者鍍錫銅符合IEC 60228,VDE 0295 2類標準2. 絕 緣：低煙無鹵阻燃混合物3. 顏色識別：符合 HD 402標準4. 應用標準：HD21.3 S3、VDE-0281Part-3、CE Low Voltage Diretive、73/23/EECand 93/68/EEC技術參數：1. 額定電壓：300/500V2. 測試電壓：2000V 符合EN 50525-3-313. 最小彎曲半徑固定敷設：12.5×D (電纜外徑)移動安裝：16×D (電纜外徑) 4. 溫度范圍固定敷設：-20至+70℃ 移動安裝：-5至+70℃型號（Model 標稱截面（mm2））絕緣厚度平均外徑上限電纜近似重量（kg/km）20℃導體最大直流電阻（Ω/km）70℃時最小絕緣電阻（MΩ?km）不鍍金屬鍍金屬H05Z1-U 0.50.628.33636.70.014H05Z1-U 0.750.62.211.1524.524.80.013H05Z1-U 1.00.62.313.7618.118.20.011H05Z1-R 0.5 2.18.83636.70.014--H05Z1-R 0.750.62.31224.524.80.012H05Z1-R 1.0 2.514.818.118.20.011--H05Z1-K 0.5 2.193940.10.013--H05Z1-K 0.750.62.312.22626.70.011H05Z1-K 1.0 2.414.719.5200.01--
HO5Z1-R
HO5Z1-R良好的耐候性；良好的柔軟度;符合歐盟協調標準;鹵酸氣體釋放量，符合IEC754-1，使用于核電站、地鐵車站、電話交換機及計算機控制中心、高層建筑大樓、賓館、廣播電視臺、重要軍事設施、石油 平臺等，以及人員較集中，空氣密度低的場所。符合認證:RoHSCE 電纜結構1. 導 體：絞合裸銅或者鍍錫銅符合IEC 60228,VDE 0295 2類標準2. 絕 緣：低煙無鹵阻燃混合物3. 顏色識別：符合 HD 402標準4. 應用標準：HD21.3 S3、VDE-0281Part-3、CE Low Voltage Diretive、73/23/EECand 93/68/EEC技術參數：1. 額定電壓：300/500V2. 測試電壓：2000V 符合EN 50525-3-313. 最小彎曲半徑固定敷設：12.5×D (電纜外徑) 4. 溫度范圍固定敷設：-20至+70℃型號（Model 標稱截面（mm2））絕緣厚度平均外徑上限電纜近似重量（kg/km）20℃導體最大直流電阻（Ω/km）70℃時最小絕緣電阻（MΩ?km）不鍍金屬鍍金屬H05Z1-U 0.50.628.33636.70.014H05Z1-U 0.750.62.211.1524.524.80.013H05Z1-U 1.00.62.313.7618.118.20.011H05Z1-R 0.5 2.18.83636.70.014--H05Z1-R 0.750.62.31224.524.80.012H05Z1-R 1.0 2.514.818.118.20.011--H05Z1-K 0.5 2.193940.10.013--H05Z1-K 0.750.62.312.22626.70.011H05Z1-K 1.0 2.414.719.5200.01--
